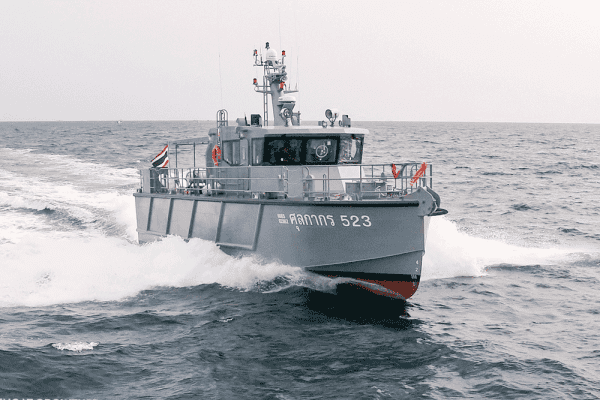

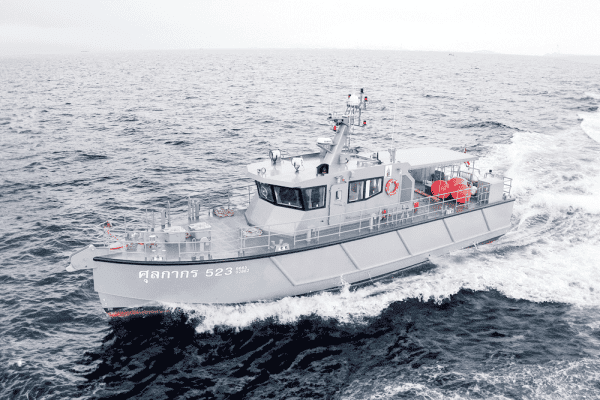

20M PATROL VESSEL (CUSTOMS 523)
Specifications
|
Ship Desription |
20.5 m Monohull Patrol Vessel |
|
Ship Name |
CUSTOMS 523 (ศุลกากร 523) |
|
Construction Material |
Aluminium Marine Grade Sea |
|
Sea State |
3 |
PRINCIPAL DIMENSIONS |
|
|
Platform |
Monohull |
|
Length Overall |
20.50 m |
|
Length Waterline |
20.15 m |
|
Beam |
5.50 m |
|
Depth |
3.10 m |
|
Draft |
0.85 m |
CAPACITIES |
|
|
Crew |
6 |
|
Fuel |
4680 liters |
|
Fresh Water |
480 liters |
PROPULSION AND PERFORMANCE |
|
|
Maximum Speed |
38.0 knot |
|
Crusing Speed |
20.0 knot |
|

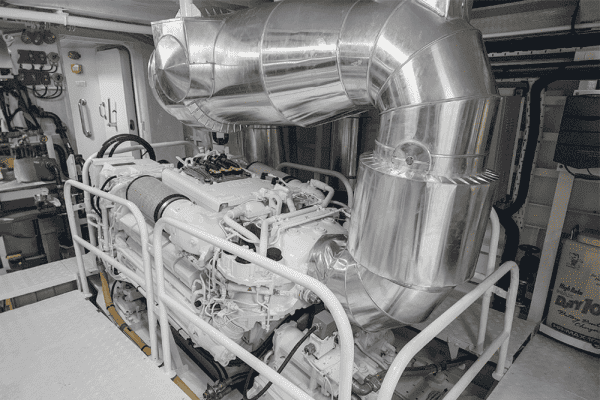

Main Engines |
2 x MTU 10V2000 M96L (2 x 1193 kW at 2450 rpm) |
|
Gearboxes |
2 x ZF 3000 (2.952 : 1) |
|
Propusion |
2 x FPP, 5 Blade Propellers (NiAl Bronze) |
|
Generator sets |
2 x 38 ekW at 1500 rpm |
REGURATORY |
|
|
Flag |
Thailand |
|
Class |
Lloyd’s Register (✠100A1, SSC, HSC, Patrol, Mono, G3) |
Able to download supporting documents or request detail for 20M PATROL VESSEL (CUSTOMS 523)from the button below.
